Air conditioning systems or air handlers (Air Handling Units - AHU) act as vital arteries in modern buildings, hospitals, industrial plants and commercial complexes. The beating heart of these systems are centrifugal fans that are responsible for circulating the air. But this beating heart can paralyze the whole system if it has an irregular beat (or imbalance). Aerator balance is not just a simple repair; Rather, it is a precise science and an engineering necessity that neglecting it leads to exorbitant costs.
In this specialized article, we will go into the depth of the topic of balancing, the causes of imbalance, the exact methods of its correction (static and dynamic) and its tremendous effects on energy efficiency. Also, we will introduce the best reference for receiving specialized services in Tehran and all over Iran, i.e. Balancing collection of centrifugal fans by Engineer Khalili.
An Introduction to Unbalance: The Silent Killer of Rotating Equipment
Why are air conditioner fans unbalanced?
There are several reasons for the fan to go out of balance, knowing them is the first step in prevention:
- Accumulation of pollution and sediment: Particles of dust, oil or fat in the exhaust air gradually sit on the fan blades. If this deposition is not uniform, the balance of the fan will be disturbed. Corrosion and wear: In chemical or humid environments, the fan blades may be corroded and lose part of their mass. Physical damage: Foreign objects hitting the fan or deformation of the blades due to high temperature. Improper assembly and repairs: Using screws and Nuts of different weight in previous repairs or inaccuracy in installing the propeller on the shaft.
- Flaws in the original construction: Even new fans may not be balanced due to casting or machining errors.

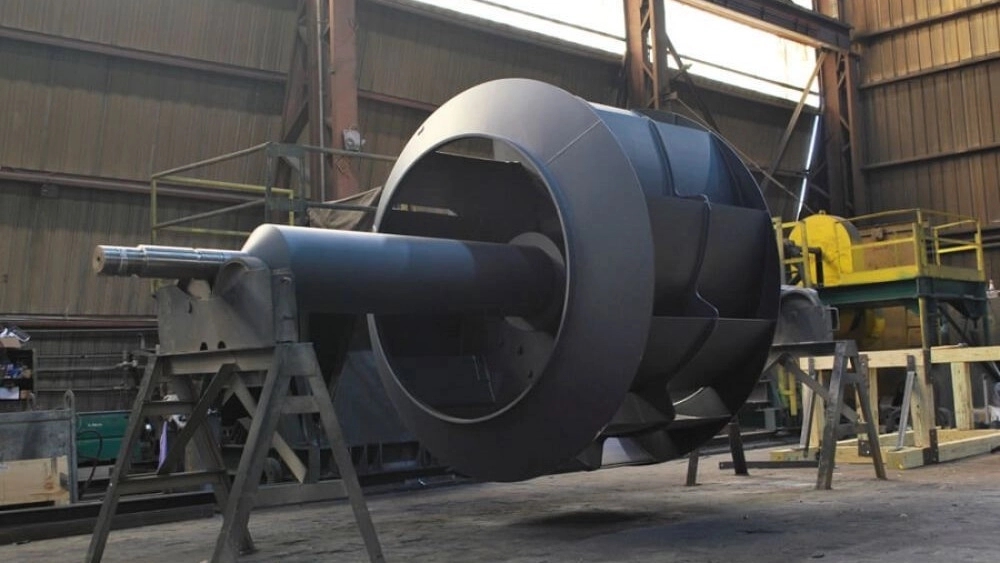

Scientific methods of air conditioner balance
A) Static Balancing
This method is the most basic type of balance. In static balancing, the fan is mounted on very low-friction bearings and allowed to rotate under the force of gravity. The heavier point of the fan tilts downward.
- Usage: It is mostly used for narrow, disk-shaped fans or fans with very low speed.
- Limitation: This method cannot detect couple imbalances and is not sufficient for wide centrifugal fans.
b) Dynamic Balancing - the golden standard
Dynamic balance is the most accurate and advanced air conditioner balance method. In this method, the fan rotates at its operating speed (actual speed).
- Vibration analysis: Piezoelectric sensors and accelerometers are mounted on the bearings to measure the amplitude and phase of vibrations.
- Vector detection: The analyzer determines exactly how much weight needs to be added or subtracted, and at what angle.
- Two-plane correction: Fans Centrifuges usually need two-plane balancing to remove transverse anchors.
- Expert tip: Dynamic balancing is the only method that can guarantee that the fan works at its maximum speed without vibration. This is the service that Khalili Engineer Group provides with the most advanced portable devices at your project site.
Warning Signs: When Is Your Air Conditioner Screaming For Help?
Many technical managers don't notice the problem until the fan stops working completely. But the air conditioner shows signs before complete failure:
- Increasing vibrations: If you put your hand on the air conditioner body and feel a noticeable vibration, or if the under-chassis shocks oscillate violently, it's time for a balance.
- Sound pollution: A “hum hum” sound or a screeching sound from bearing pressure is an indication of imbalance.
- Overheating Bearings: Unbalance causes a strong radial force to be applied to the bearings, resulting in an increase in their temperature.
- Fatigue cracks: Observing fine cracks on the fan body, welds, or motor support chassis is a sign of long-term vibrations. They become.
Dangerous consequences of ignoring the balance
Not paying attention to air conditioner balance is not just a technical problem, but a big financial loss:
- Catastrophic damage: Breaking the main shaft of the fan during operation can act like an explosion and cause heavy loss of life and property.
- 30% increase in power consumption: A motor trying to rotate an unbalanced mass draws more amperes.
- Chain failures: Vibration from fan to motor, coupling, Bearings and even cooling/heating coils are moved and cause them to leak and fail.
Benefits of investing in professional balancing services
Using the specialized services of Balance is not an out-of-pocket expense, but an investment that returns:
- Increasing the useful life of equipment: The life of bearings and electric motor increases up to 3 times.
- Significant reduction of noise: The work or life environment will be quieter and more peaceful.
- Optimization of energy consumption: Reducing the load on the motor means reducing the electricity bill.
- Preventing stoppage of production: in factories Industrially, the failure of the air conditioner can stop the production line. Preventive balance prevents this loss.
Introduction of specialized reference: Centrifugal fan balance services, Engineer Khalili
Among technical service providers, expertise and experience are the first words. Khalili Engineer Group with years of brilliant experience, is known as a specialized pole of balance in Tehran and all over the country.
Why engineer Khalili?
This collection is not just a repair group; Rather, it is an engineering team equipped with the latest technology that provides the following services:
1. On-Site Balancing
Unpacking giant industrial fans and transporting them to the balance workshop is costly and time-consuming. The Khalili engineer team arrived at the project site with advanced portable equipment and without the need for disassembly, they balance the fan with the most accurate tolerances (ISO 1940/1 standard).
2. Vibration Analysis
Before any action, the health status of the entire system is checked. Is the problem really due to imbalance or misalignment or mechanical laxity? Engineer Khalili's team finds the root of the problem with accurate diagnostics.
3. Extensive coverage
From residential and office towers in Tehran to cement, steel, petrochemical factories and hospitals all over Iran; No project is out of reach for this team.
4. Quality assurance and reporting
After the balance is done, a complete report of the "before" and "after" balance status along with vibration diagrams will be provided to the employer to ensure the quality of the work.
Conclusion: The smart choice for the future of ventilation
The balance of air conditioners and centrifugal fans is the front line of maintenance and repairs (PM) in facilities. Ignoring small vibrations today will lead to big failures tomorrow. If you want your ventilation system to work with high efficiency, low noise and long life, you should leave the work to Kardan.
Balance series of centrifugal fans by Engineer Khalili with a combination of technical knowledge, operational experience and modern equipment, is ready to restore peace and efficiency to your facilities.
